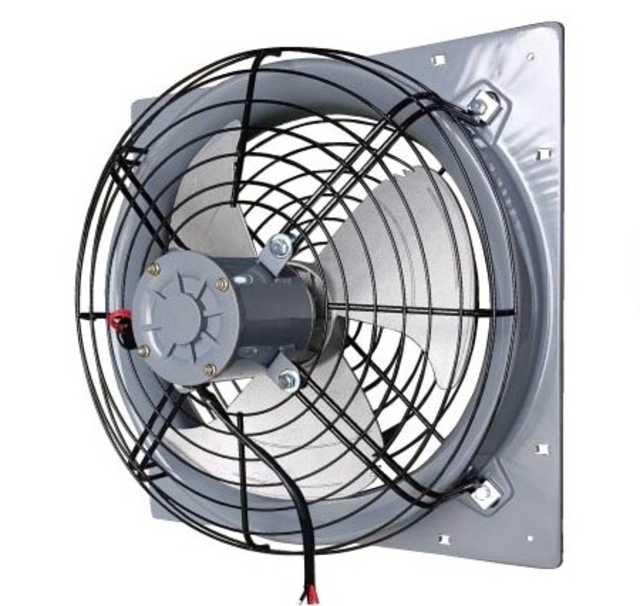

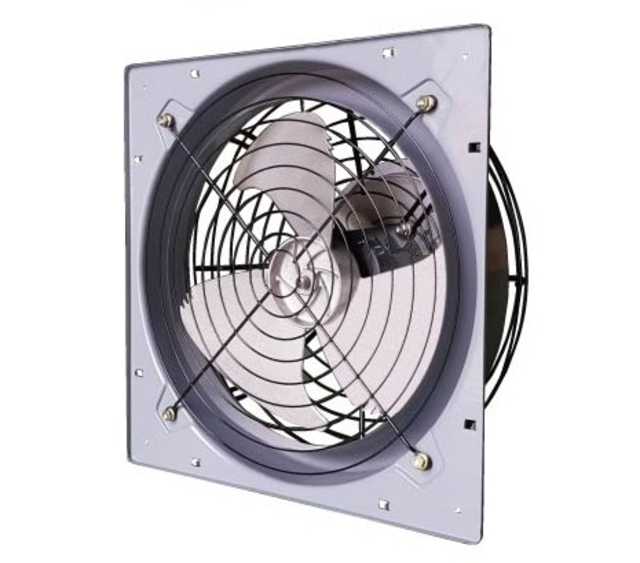

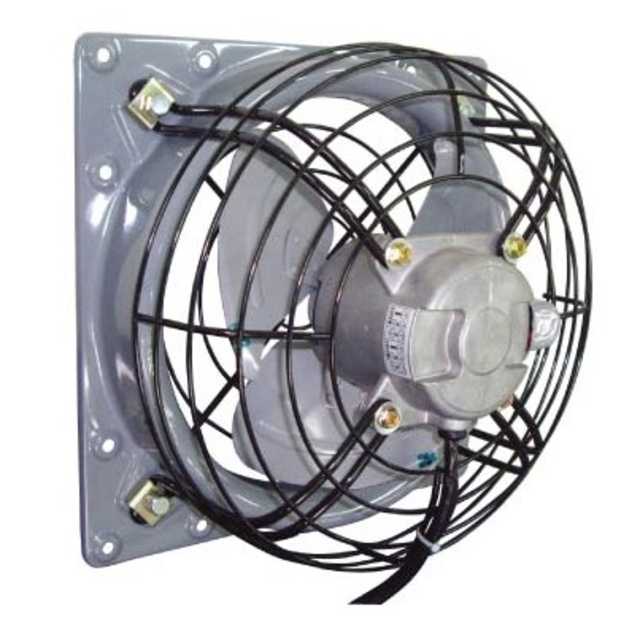

Pressure Exhaust Fan
Model：CHV Series
Frequency：50/60 Hz
Features
- Compact, large airflow, low noise.
- Bellmouth design, high airflow.
- Steely bearings, suitable for continuous applications.
- Can be installed horizontally, vertically, obliquely, or in any other position.
- These ventilating fans can be used in factories, machinery, office, toilet, foundry shop fume extraction hoods.
Specification Table
| Type |
phase |
Output (W) |
Rotating Speed (min-1) |
Voltage (V) |
Current (A) |
Pressure 靜壓 (Pa) |
Air Flow 風量 (m3/min) |
Noise Level (dB) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1~ | 43/50 | 1400/1650 | 110 220 |
1.2/1.0 0.6/0.5 |
40/60 | 18/21 | 45/50 | 5 | |
| CHV-12 | 1~ | 72/90 | 1400/1650 | 110 220 |
1.3/1.1 0.7/0.6 |
68/68 | 30/35 | 50/55 | 6 |
| CHV-16 | 1~ | 160/200 | 1400/1650 | 110 220 |
3.4/3.0 1.7/1.5 |
130/130 | 63/73 | 60/65 | 13 |
Performance graph
Dimensions
