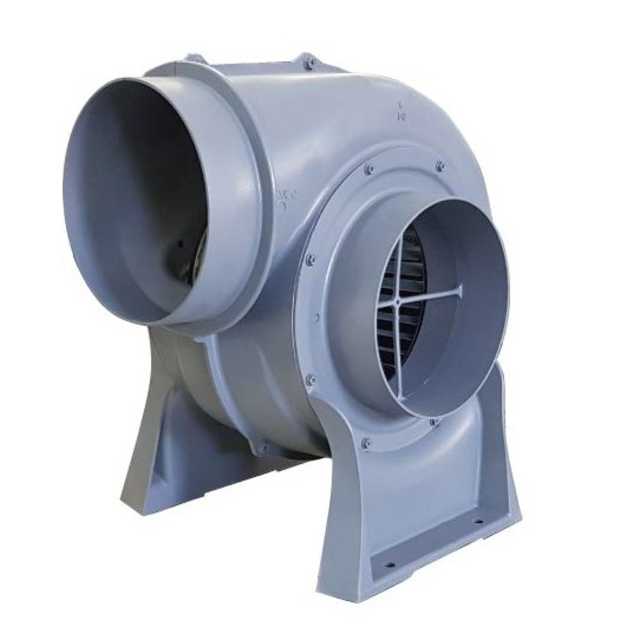

Multipurpose Fan
Model:SFD Series
Frequency:50/60 Hz
Combine with exquisite and robust aluminum housing, it reduces the vibration and noise when fluid travel through the blower.
It lowers the fluids turbulence by strictly research and design.
It could be used in ventilation, drying and cooling....etc.
Models with 0.75kW or more are available with IE3 or IE4 high-efficiency motors.
It lowers the fluids turbulence by strictly research and design.
It could be used in ventilation, drying and cooling....etc.
Models with 0.75kW or more are available with IE3 or IE4 high-efficiency motors.
Features
- High pressure. Larger flow. Light weight.
- Aluminum alloy material was Widespread be use, offer light products.
- I.E.C. Designed motor (1HP UP), Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
- Professional impeller designed, high pressure, larger flow, Low noise, and long life.
- Special air-flow-adjust designs offer stable flows and easily control.
- Full range styles and sufficiently finished products of each model make quickly delivery be possible.
- All blowers and fans are not suitable for gases and oily air.
Specification Table
| Type |
Phase |
Output (kW) |
Voltage (V) |
Current (A) |
靜壓 Pressure (Pa) |
風量 m3/min |
Rotating Speed (mim-1) |
Noise Level (dB) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| SFD150-02 | 1~ 3~ |
0.19 | 110/220 220/380 |
2.8/1.4 1.1/0.9 |
230/330 | 16/20 | 1400/1700 | 65/70 | 11 |

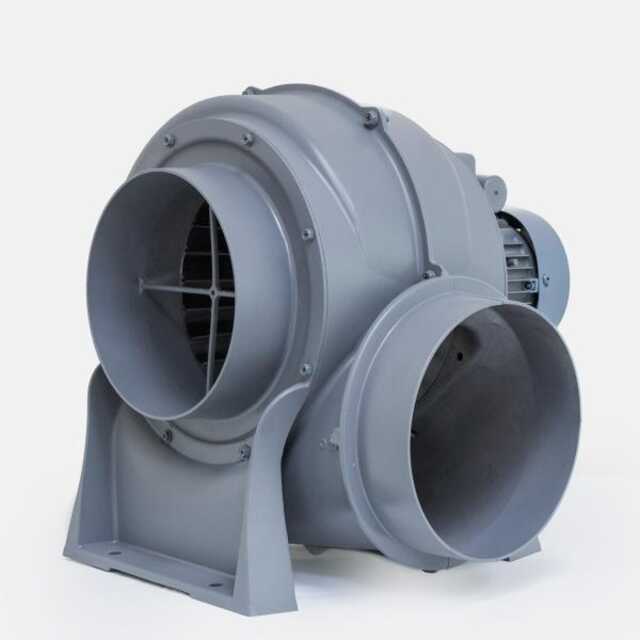

| SFD200-05AL | 1~ 3~ |
0.37 | 110/220 220/380 |
5/2.5 1.8/1.2 |
500/700 | 17/27 | 1400/1700 | 73/77 | 14 |
| TFD200-1 | 1~ 3~ |
0.74 | 1~220 220/380 |
5 3/1.8 |
500/850 | 25/30 | 2850/3450 | 84/88 | 18 |
Performance graph
Dimensions
