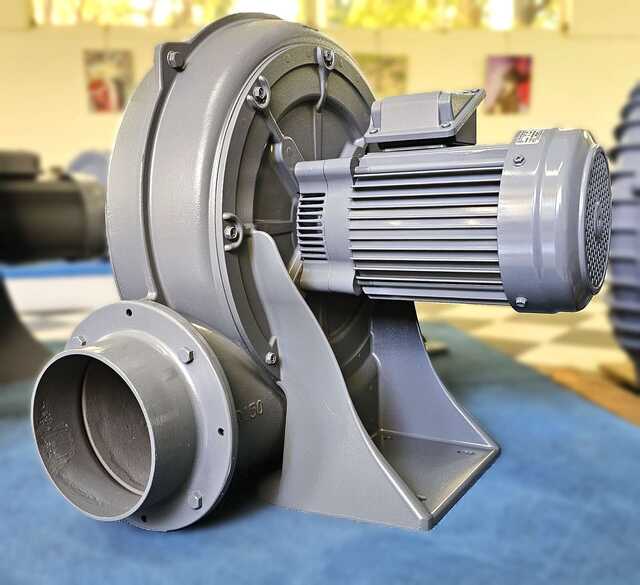

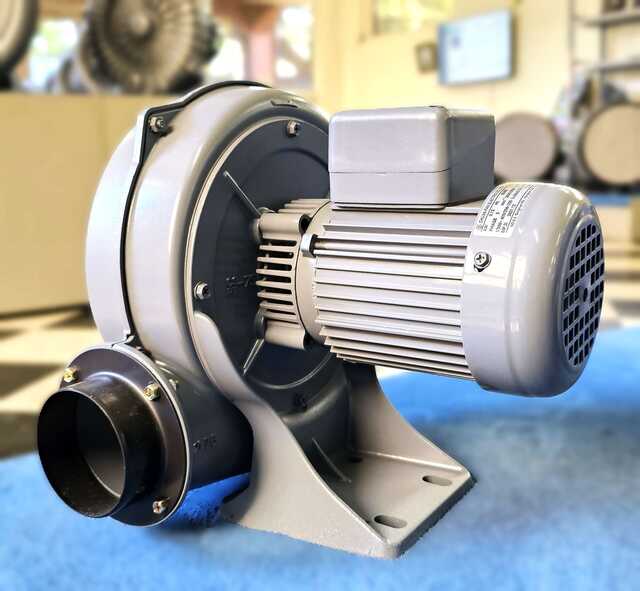

PF-H Heat-Resistant Radial Fan
Model：PF Series
Frequency：50/60 Hz
規格表
| Type |
Phase |
Output (kW) |
Voltage (V) |
Current (A) |
靜壓Presure (kPa) |
風量 m3/min |
In/ Outlet (mm) |
Noise Level (dB) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| PF75-02H | 1~ 3~ |
0.12 | 220 220/380 |
0.8 0.7/0.45 |
0.5/0.7 | 5/6 | 100/75 | 72/75 | 6.5 |
| PF100-05H | 1~ 3~ |
0.37 | 220 220/380 |
2.5 1.9/1.2 |
0.7/0.9 | 8/10 | 100/100 | 76/80 | 11.5 |
| PF125-1H | 1~ 3~ |
0.74 | 220 220/380 |
5 3/1.8 |
0.7/1.2 | 14/17 | 125/125 | 85/90 | 18 |
| PF150-2H | 3~ | 1.5 | 220 380 |
5.5 3.5 |
1.3/1.9 | 28/33 | 150/150 | 88/92 | 29 |
| PF150-3H | 3~ | 2.2 | 220 380 |
8 5 |
1.6/2.5 | 33/37 | 150/150 | 89/93 | 35 |
| PF200-5H-X (For 60Hz) |
3~ | 3.7 | 220 380 |
13 7.5 |
2.6 | 70 | 200/200 | 98 | 49 |
| PF200-5H (For 50Hz) |
3~ | 3.7 | 220 380 |
13 7.5 |
1.8 | 60 | 200/200 | 90 | 50 |
Dimensions
