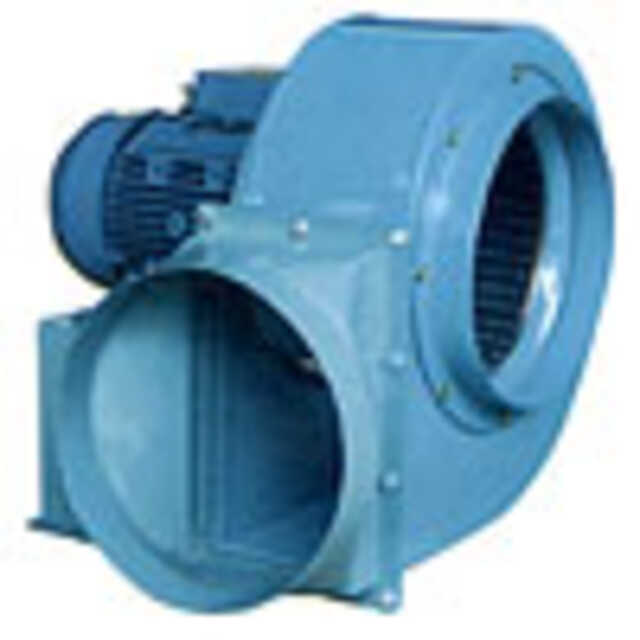

Sirocco Fan (4Pole)
Model：SSD-C Series
Frequency：50/60 Hz
Indoor ventilation. Indoor ventilation. Drying. Cooling. Kitchen smoke exhaust.
Features
- Large air volume, low noise, lightweight.
- Aluminum alloy material was Widespread be use, offer light products.
- I.E.C. Designed motor , Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
- Professional impeller designed, high pressure, larger flow, Low noise, and long life.
- Full range styles and sufficiently finished products of each model make quickly delivery be possible.
Specification Table
| Type |
Phase |
Output kW |
Voltage V |
Current A |
靜壓Pressure (max.) kPa |
風量 (max.) m3/min |
In/ Outlet mm |
Noise Lewel dB |
Weight Kg |
Rotating Speed min-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| SSD-1/4C | 1~ 3~ |
0.2 | 220 220/380 |
2 1.1/0.7 |
230/330 | 12/15 | 150/150 | 65/70 | 15 | 1400/1700 |
| SSD-1/2C | 1~ 3~ |
0.4 | 220 220/380 |
2.5 1.9/1.2 |
350/500 | 21/25 | 200/200 | 67/72 | 20 | 1400/1700 |
| SSD-1C | 1~ 3~ |
0.75 | 220 220/380 |
6 3.4/2.1 |
440/630 | 40/48 | 254/254 | 70/75 | 32 | 1400/1700 |
| SSD-2C | 3~ | 1.5 | 220/380 | 6.1/3.8 | 640/940 | 45/55 | 300/300 | 75/80 | 42 | 1400/1700 |
| SSD-3C | 3~ | 2.2 | 220/380 | 8.7/5.2 | 730/1000 | 65/76 | 300/300 | 75/80 | 48 | 1400/1700 |
Dimensions
