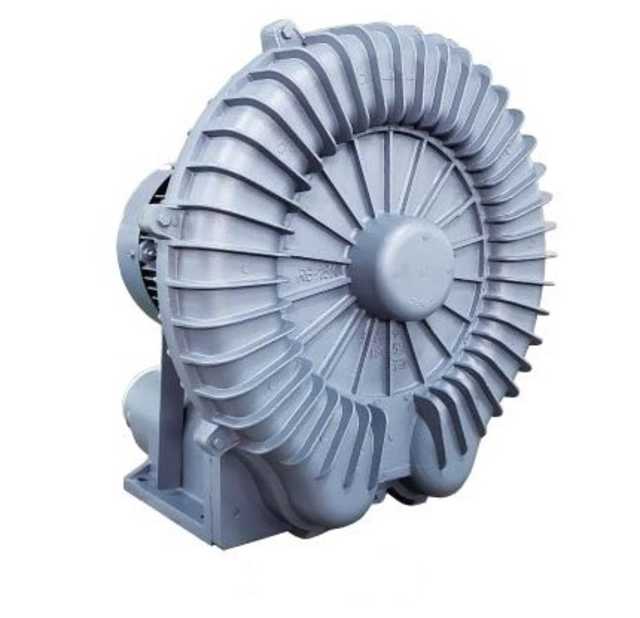

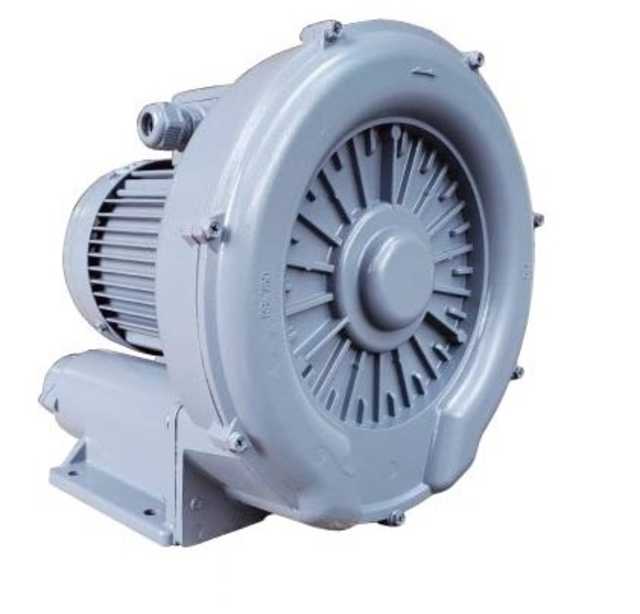

RB series Side Channel Blower(60Hz)
Model：RB Type (60HZ)
Frequency：60 Hz

Feature: Side Channel Blower are designed with practical regenerative theory.
Require no maintenance! No oily odor! Eternity life!
Features:


  • Low noise and vibration
    • Dynamic balancing minimizes vibration.
  • Dust-proofed shaft seal
    • Protects bearing from contaminated air stream and possible foreign particle damage.
  • High reliability
    • Directly connected motor shaft-impeller provides reliable, long term performance. No gears, belts, motor brushes or sliding blades to require periodic maintenance.
  • Space-efficient design
    • Unique design results in substantial airflows at moderate pressures in minimum space and weight.
  • Versatility
    • Easily throttled and changed from pressure to suction operation. May be mounted in a variety of fashiond.
  • Stable airflow
    • Centrifugal compressor design delivers smooth, stable airflow with no pulsations.
  • High-pressure airflow
    • Produces continuous high-pressure airflow. The Ring Blower is ideally suited to many industrial applications.
  • A policy of continuous improvement is followed, and the right to alter any published data without notice is reserved.
  • He maximent permissible temperature and the gas temperature at the inlet is 40°C.
Applications:

  •     Grain elevators.
    • Textile fiber collections
    • Paper industry
    • Sewage treatments
    • Cement manufacturing
    • Diesel burning
    • Pulp industry
    • Class manufacturing
    • Ice manufacturing
    • Tunnel ventilation
    • Fishery industry





Specification sheet

60Hz
Type


 		 Phase


 		 Power


(kW)		 Voltage


(V)		 Current


(A)		 Vacuum/
Presure
(Rated)
(kPa)		 Air Flow
(max)

m3/min		 In/
outLet

 		 Noise
Level

(dB)		 Weight


(Kg)
RB-200S 1~ 0.2 220 1.5 7/9 0.6 PF 1" 65 8
RB-400S 1~ 0.4 220 2.5 10/12 1.3 PF 1¼" 68 11
RB-750S 1~ 0.75 220 5 14/15 2.5 PF 1½" 72 16
RB-022S 1~ 1.5 220 9 14/15 4.5 PF 2 75 26
RB-200 3~ 0.2 220 1.1 7/9 0.6 PF 1" 65 7.5
RB-400 3~ 0.4 220 1.9 10/12 1.3 PF 1¼" 68 10
RB-750 3~ 0.75 220 3 14/15 2.5 PF 1½" 72 15
RB-750-2 3~ 1.5 220 5.5 25/28 2.5 PF 1½" 72 19
RB-022 3~ 1.5 220 5.5 14/15 4.5 PF 2" 75 23
RB-023 3~ 2.2 220 8 21/25 4.5 PF 2" 75 26
RB-033 3~ 2.2 220 8 15/15 6 PF 2" 78 28
RB-035 3~ 3.7 220 13 28/30 6 PF 2" 78 36
RB-055 3~ 3.7 220 13 22/21 7.5 PF 2" 85 42
RB-057 3~ 5.5 220 19 30/34 7.5 PF 2" 85 52
RB-077 3~ 5.5 220 19 28/25 11 PF 2½" 95 57
RB-0710 3~ 7.5 220 26 30/38 11 PF 2½" 95 67
RB-110N 3~ 7.5 220 26 26/24 12 PF 2½" 85 68
RB-1515 3~ 11 220 35 15/15 24 PF 4" 105 120
RB-1520 3~ 15 220 47 20/20 24 PF 4" 105 130
RB-1525 3~ 19 220 58 25/25 24 PF 4" 105 140
Performance graph

性能圖
Dimensions
