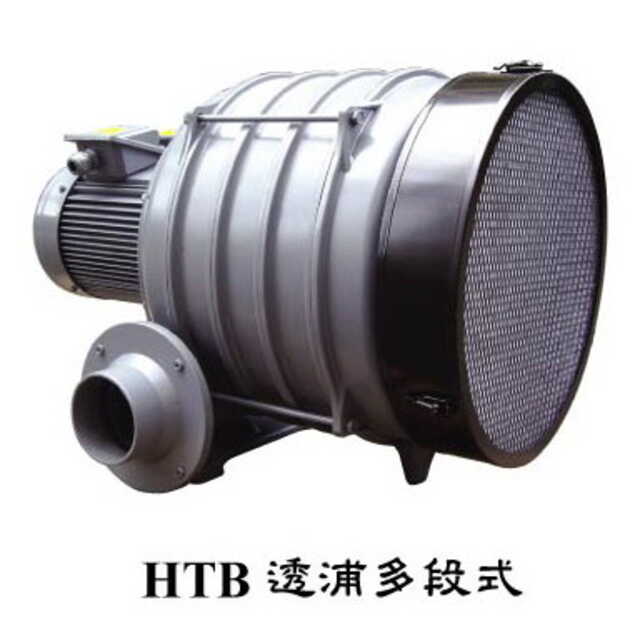

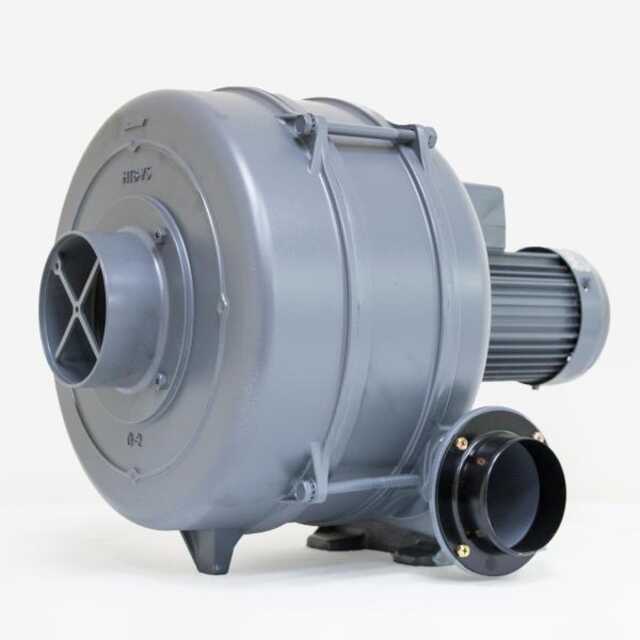

High pressure. Larger flow. Light weight.
Aluminum alloy material was Widespread be use, offer light products.
I.E.C. Designed motor (1HP UP), Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
Professional impeller designed, high pressure, larger flow, Low noise, and long life.
Special air-flow-adjust designs offer stable flows and easily control.
Full range styles and sufficiently finished products of each model make quickly delivery be possible.

E3Automatic motor Stator Winding / Wedge Inserter / Coil Forming Machinery
Manufacturing Rage: 2.2kW~19kW

Type	Phase	Frequency (Hz)	Power (KW)	Voltage (V)	Current (A)	Pressure (max)kPa	Air Flow (max) m³/min	Outlet	Noise Level (dB)	Weight (Kgs)	Stock
HTB75-032	3~	50/60	0.37	220 380	1.9 1.2	2.1/2.6	6/7	75 mm	68/72	11.5	V
HTB75-053	3~	50/60	0.37	220 380	1.9 1.2	2.9/3.8	6.5/7.5	75 mm	69/74	15.5	V
HTB75-104	3~	50/60	0.74	220 380	3 1.8	3.7/5	6.5/8	75 mm	70/75	20	V
HTB75-105	3~	50/60	0.74	220 380	3 1.8	4.2/6	6.8/8.5	75 mm	70/75	22	V
HTB100-102	3~	50/60	0.74	220 380	3 1.8	3.4/4.8	11/13	100 mm	74/80	23	V
HTB100-203	3~	50/60	1.5	220 380	5.5 3.5	5/7	11/14	100 mm	75/82	31	V
HTB100-304	3~	50/60	2.2	220 380	8 5	6.6/9	12.5/16	100 mm	78/84	39	V
HTB100-505	3~	50/60	3.7	220 380	13 7.5	7.9/11	12.8/16.5	100 mm	80/85	51	V
HTB125-503	3~	50/60	3.7	220 380	13 7.5	5.8/7.9	19/23	125 mm	82/88	56	V
HTB125-704	3~	50/60	5.5	220 380	19 11.5	7.5/10.5	20/24	125 mm	84/90	73	V
HTB125-1005	3~	50/60	7.5	220 380	26 15.5	9/13	20/24	125 mm	84/90	85	V
HTB200-1502	3~	50/60	11	220 380	36 22	7/9	52/65	200 mm	92/110	130
HTB200-2002	3~	50/60	15	220 380	47 28	8/10	56/70	200 mm	92/110	140
2HTB65-503	3~	50/60	3.7	220 380	13 7.5	12/16	11/13	PF 2 1/2"	82/88	68
2HTB65-704	3~	50/60	5.5	220 380	19 11.5	15/21	12/14	PF 2 1/2"	82/88	90
2HTB65-1005	3~	50/60	7.5	220 380	26 15.5	18/26	13/15	PF 2 1/2"	82/88	102
