Product

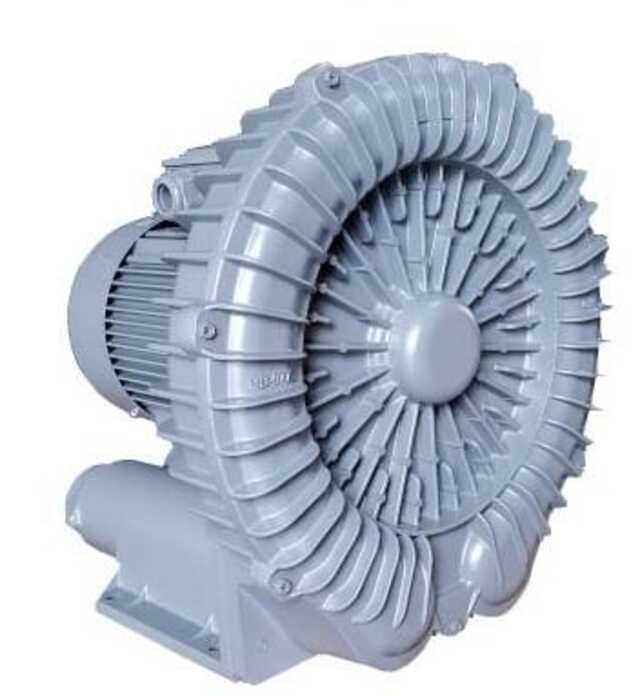

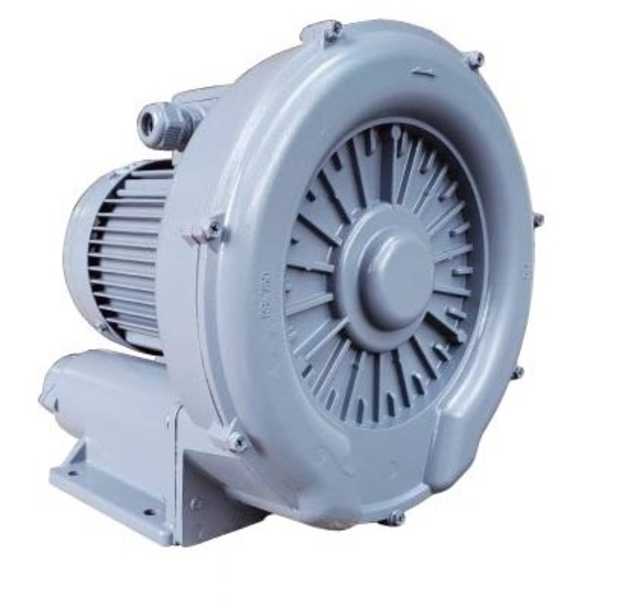

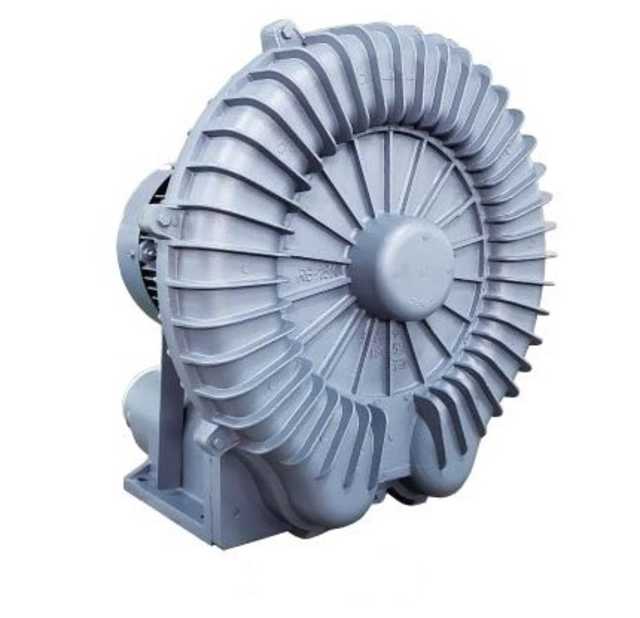

Side Channel Blowers

Side Channel Blowers

Side Channel Blowers

Product ID: RB SERIES (50HZ)

Feature: Side Channel Blowers are designed with practical regenerative theory.
Require no maintenance! No oily odor! Eternity life!

Specifications:
  • Applications:
    • Grain elevators.
    • Textile fiber collections
    • Paper industry
    • Sewage treatments
    • Cement manufacturing
    • Diesel burning
    • Pulp industry
    • Class manufacturing
    • Ice manufacturing
    • Tunnel ventilation
    • Fishery industry



IE3Automatic motor Stator Winding / Wedge Inserter / Coil Forming Machinery
Manufacturing Rage: 2.2kW~19kW

Features:
  • Low noise and vibration
    • Dynamic balancing minimizes vibration.
  • Dust-proofed shaft seal
    • Protects bearing from contaminated air stream and possible foreign particle damage.
  • High reliability
    • Directly connected motor shaft-impeller provides reliable, long term performance. No gears, belts, motor brushes or sliding blades to require periodic maintenance.
  • Space-efficient design
    • Unique design results in substantial airflows at moderate pressures in minimum space and weight.
  • Versatility
    • Easily throttled and changed from pressure to suction operation. May be mounted in a variety of fashiond.
  • Stable airflow
    • Centrifugal compressor design delivers smooth, stable airflow with no pulsations.
  • High-pressure airflow
    • Produces continuous high-pressure airflow. The Ring Blower is ideally suited to many industrial applications.
  • A policy of continuous improvement is followed, and the right to alter any published data without notice is reserved.
  • He maximent permissible temperature and the gas temperature at the inlet is 40°C.
See more complete detail
        Type         Phase Frequency
(Hz)
Power
(KW)
Voltage
(V)
Current
(A)
Vacuum/Pressure
kPa(Rated)
Air Flow
m³/min(max)
In/Out Let Noise Level
(dB)
Weight
(Kgs)
Stock
RB-200S 50 0.18 220 1.5 6 / 7 0.5 PF 1" 60 8 V
RB-400S 50 0.37 220 2.7 9 / 10 1.2 PF 1 1/4" 65 11 V
RB-750S 50 0.74 220 4.5 13 / 16 2 PF 1 1/2" 67 16 V
RB-022S 50 1.5 220 9 17 / 18 3.2 PF 2" 70 26 V
RB-200 50 0.18 380 0.9 6 / 7 0.5 PF 1 60 7.5 V
RB-400 50 0.37 380 1.3 9 / 10 1.2 PF 1 1/4" 65 10 V
RB-750 50 0.74 380 1.8 13 / 16 2 PF 1 1/2" 67 15 V
RB-750-2 3~ 50 1.5 380 3.5 20 / 22 2 PF 1 1/2" 67 19
RB-022 50 1.5 380 3.5 17 / 18 3.2 PF 2" 70 23 V
RB-023 50 2.2 380 5 18 / 21 3.2 PF 2" 70 26 V
RB-033 50 2.2 380 5 20 / 20 5 PF 2" 75 28 V
RB-035 50 3.7 380 7.5 22 / 29 5 PF 2" 75 36
RB-055 50 3.7 380 7.5 22 / 24 7 PF 2" 85 42 V
RB-057 50 5.5 380 11.5 26 / 30 7 PF 2" 85 52
RB-077 50 5.5 380 11.5 21 / 28 9 PF 2 1/2" 88 57 V
RB-0710 50 7.5 380 15.5 21 / 28 9 PF 2 1/2" 88 67
RB-110N 50 7.5 380 15.5 21 / 25 10 PF 2 1/2" 85 68 V
RB-1515 50 11 380 21 20 / 18 19 PF 4" 95 120
RB-1520 50 15 380 28 26 / 24 19 PF 4" 95 130
RB-1525 50 19 380 35 32 / 30 19 PF 4" 95 140
Certificate:
  • CE mark
